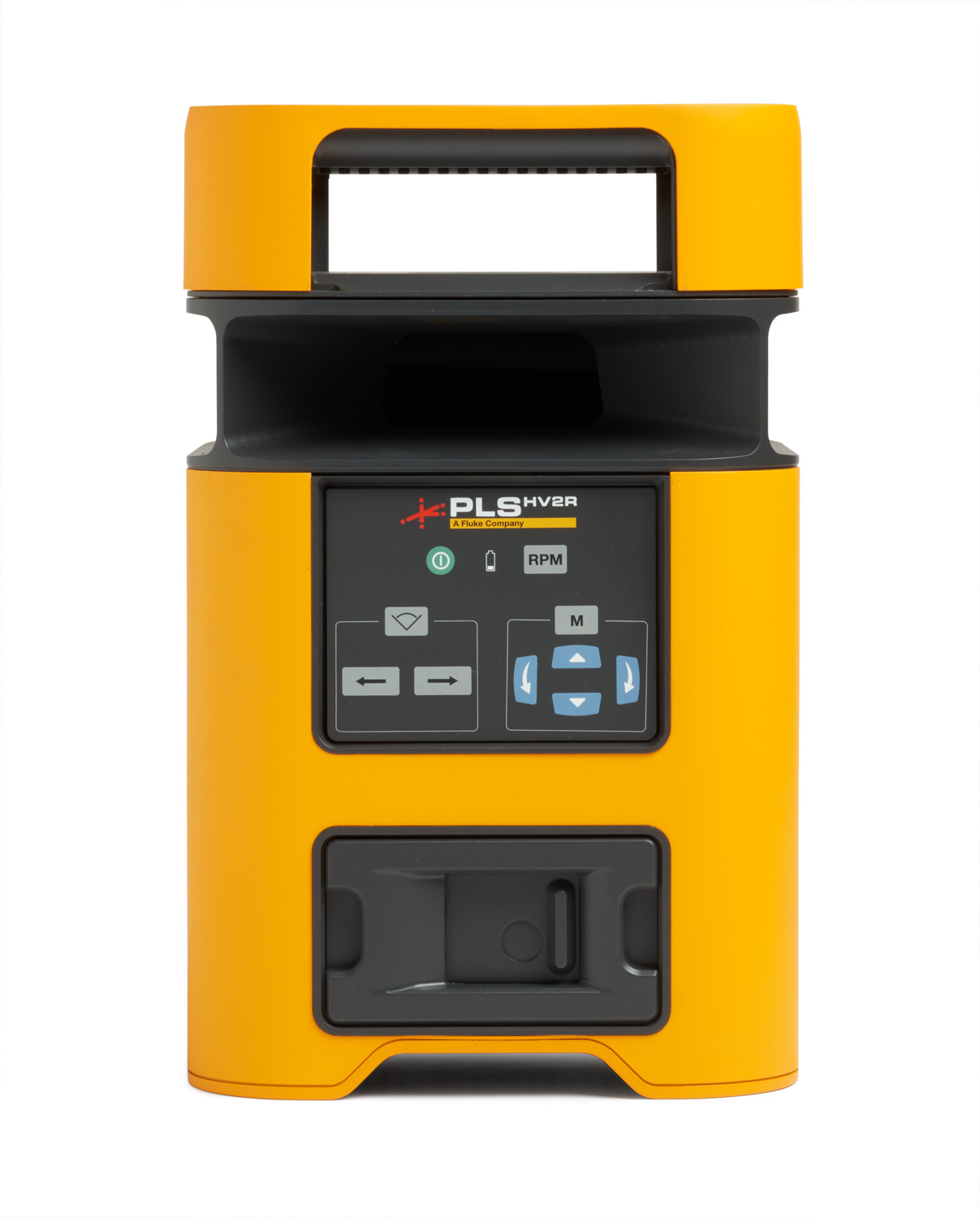

HV2R Red Rotary Laser Level

HV2R Red Rotary Laser Level

SKU: N/A
Buy now

Horizontal / Vertical Rotary Laser

The PLS HV2R red rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls. The HV2R model red rotary laser emits a laser line in the horizontal or vertical plane. The HV2R rotary lasers also emit a point from the top when placed in the vertical position. The HV2R lasers are ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.

  • HV2R comes with metal ceiling and wall bracket to help with large suspended ceiling layout and installation
  • The combo kit includes rotary laser level, rotary remote, XLD laser detector, detector clamp, Imperial grade rod, TPOD410, alkaline batteries with battery tray, and a rugged carrying case.
  • The kit includes elevating tripod and 16-foot grade rod.
  • Applications include setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation.

Additional information

Accuracy

≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
Working Range

≤ 300 m (1000 ft) (w/detector)
IP Rating

Product IP Rating 67
Operating Time

60 hours
Laser Class

Class II
Batteries

4 D Alkaline, NIMH Rechargeable



Part Number SKU Item Description In the Box
5022501

PLS HV2R Z



Red Rotary Laser Bare Tool

 PLS HV2R laser level, PLS BP10
Alkaline Battery Tray with 4xD
batteries, safety sheet and quick
reference guide.
15022512 PLS HV2R SYS

Red Rotary Laser System

 PLS HV2R laser level, PLS BP10 Alkaline
Battery Tray with 4x D batteries, PLS RBP10
NiMH Rechargeable Battery Tray
with BC20 Universal Charging Cord,
PLS RC2 Remote control, PLS XLD Rotary
Laser Detector, PLS XLD Clamp, PLS WCB10 Rotary
Wall and Ceiling Mount, PLS RRT4 Red Reflective
Target, safety sheet and quick reference guide.
5022558 PLS HV2R KIT (recommended replacement for PLS HV2R Combo Kit) Red Rotary Laser Kit PLS HV2R laser level, PLS BP10 Alkaline
Battery Tray with 4x D batteries, PLS RBP10
NiMH Rechargeable Battery Tray
with BC20 Universal Charging Cord,
PLS RC2 Remote control, PLS XLD Rotary
Laser Detector, PLS XLD Clamp, PLS WCB10 Rotary
Wall and Ceiling Mount, PLS RRT4 Red Reflective
Target, PLS TPOD500 Elevator Tripod,
PLS GR16 Grade Rod
safety sheet and quick reference guide.
5195946 PLS HV2R Combo Kit (Obsolete) Red Rotary Laser Combo Kit PLS HV2R laser level, PLS BP10 Alkaline Battery Tray
with 4x D batteries, PLS RC2 remote control,
PLS XLD Rotary Laser Detector,
PLS XLD Clamp, PLS RRT4, PLS TPOD 410,
Grade Rod 1/8th & 1/10th scale, and carrying case

Technical Data

H2, HV2R, HV2G, and Combo Kit Data Sheet
